Product Highlights:
It operates silently and produces no noise.

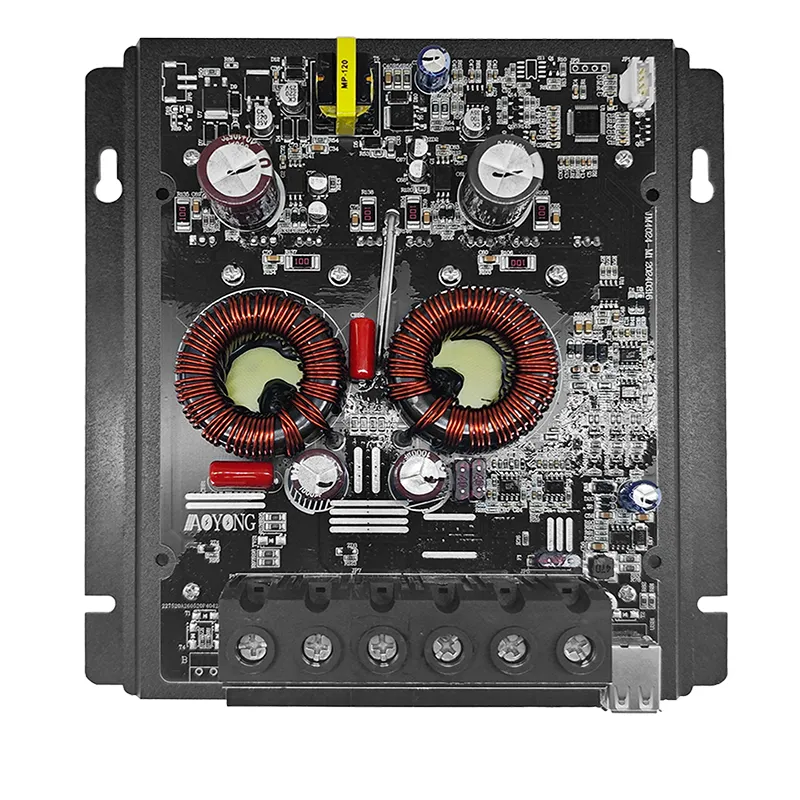

Adopts high-efficiency MPPT tracking technology with DC-DC buck-boost design for higher solar energy utilization rate
Universal 12V/24V auto-adaptation, supports up to 960W solar panel input, ideal for home energy storage and outdoor off-grid power supply
Built-in dual 5V USB ports to charge phones, lights and other electronics directly without an inverter
Multi-language LCD monitor shows full operating data for easy status checking
Supports no-battery test mode; optional WiFi module enables remote data viewing for easier installation & debugging
Specification Details
Product Name： MPPT/DC-DC Solar Charge Controller
Rated Charging Current：40A
Max PV Input Voltage：100V
Working Mode：High-efficiency MPPT Tracking + DC-DC Mode
Compatible Battery Voltage：Auto 12V / 24V Recognition
Max PV Power for 12V System ：480W
Max PV Power for 24V System ：960W
Product Dimension ： 185×182×72mm
Configuration Description
USB Output：Dual 5V USB ports for digital device charging
Special Operation Mode：Support No-Battery Working Mode

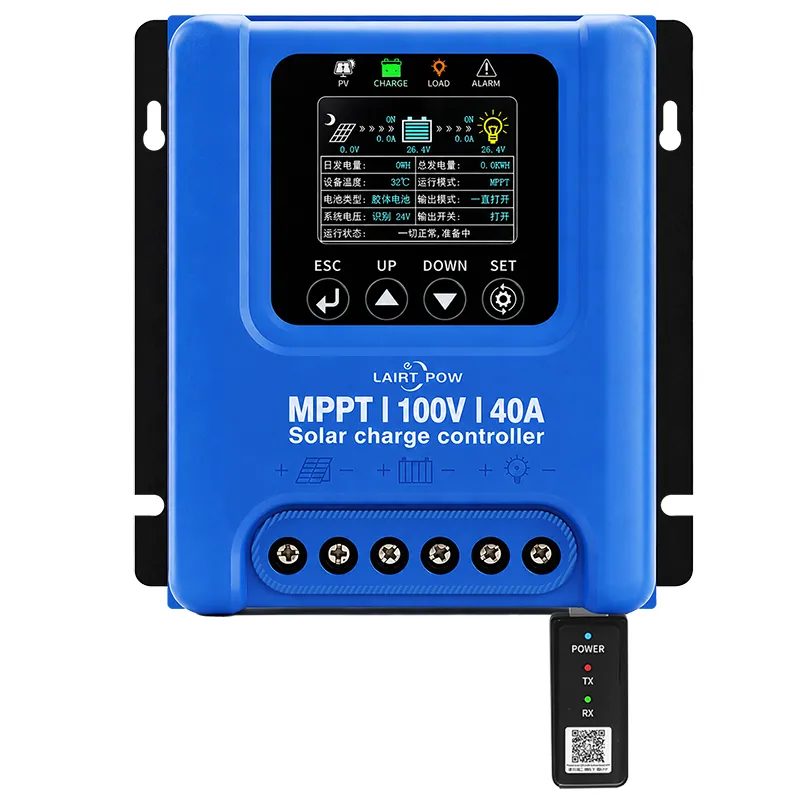

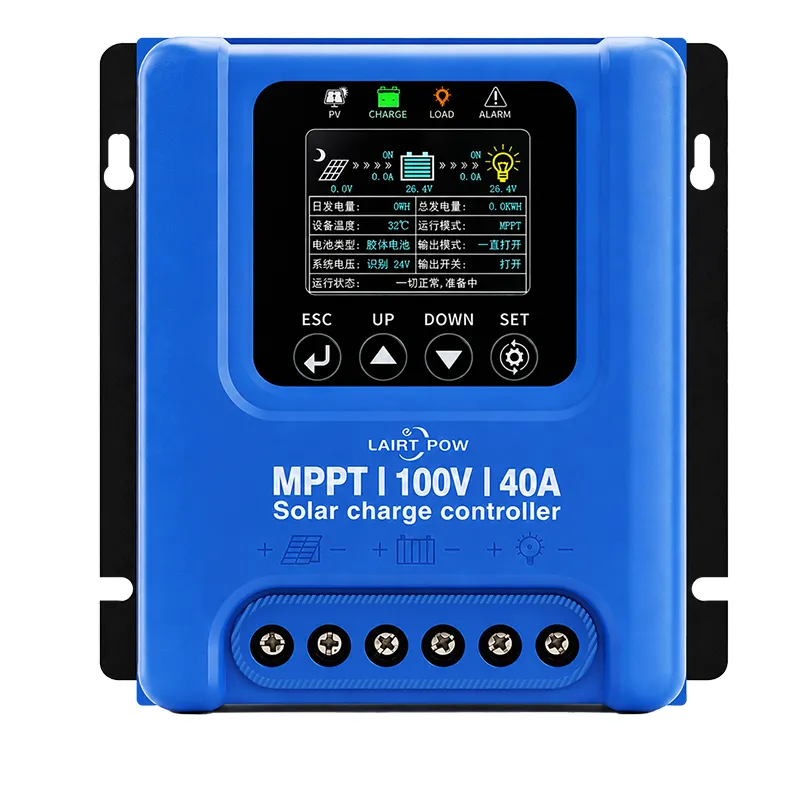

Display Screen：Multi-language switchable LCD screen; real-time display of power generation, equipment temperature, battery voltage, load status and other data
Control Buttons：ESC / UP / DOWN / SET 4-key operation

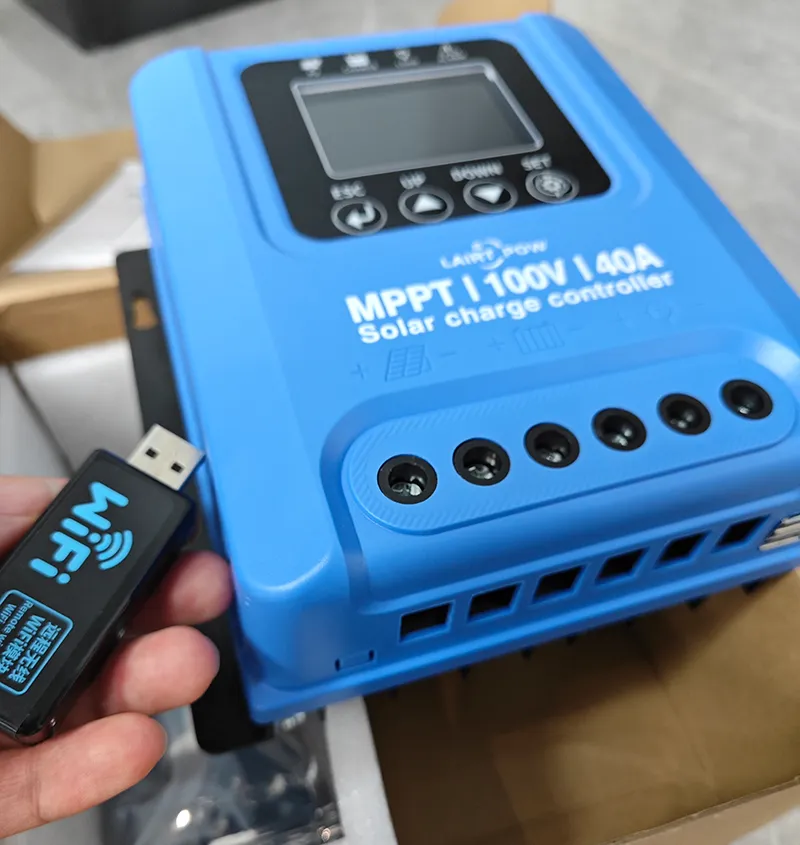

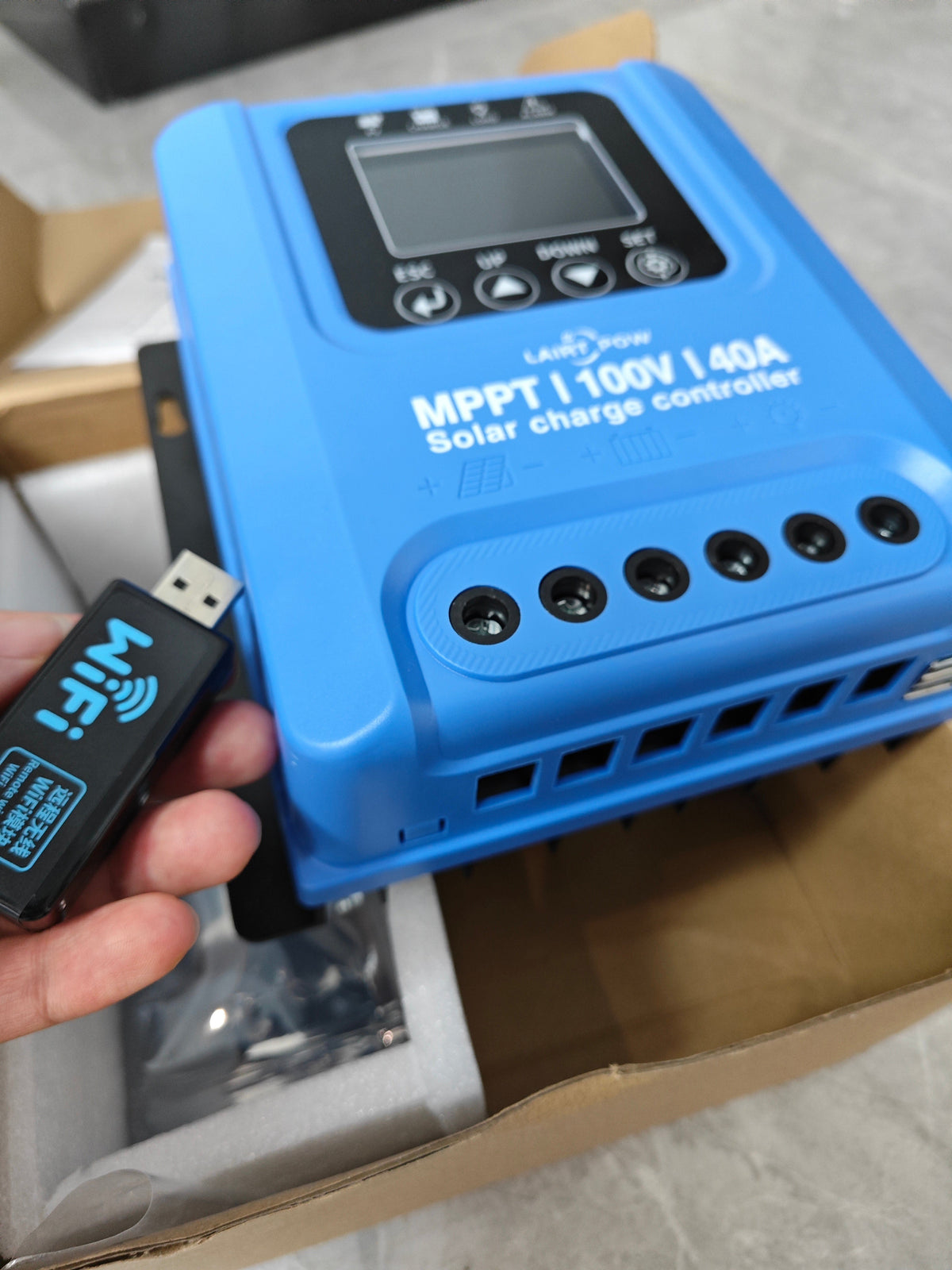

Expandable Function：Optional WiFi module for remote monitoring
Battery Compatibility：Compatible with multiple battery types, suitable for various off-grid power systems
Status Indication ：LED indicators for charging, load and fault alarm
