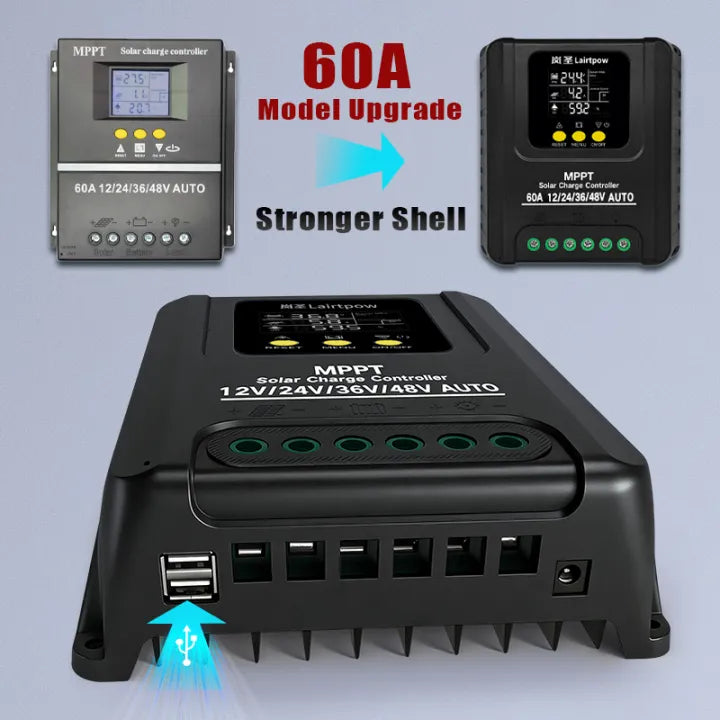

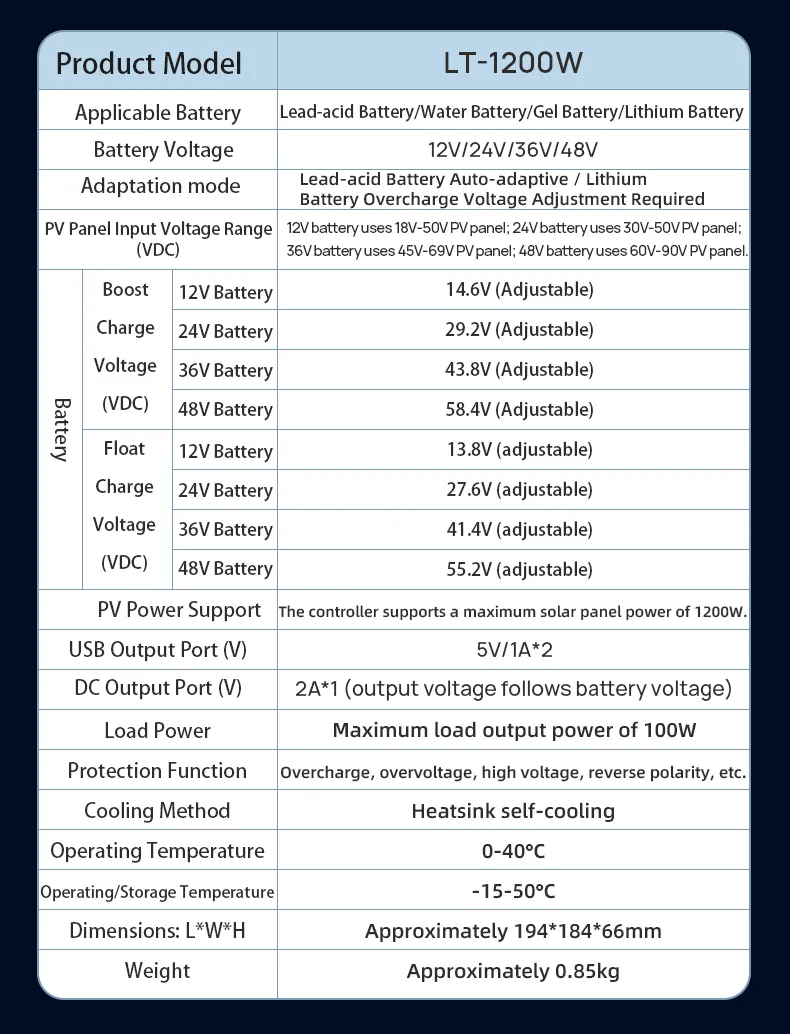

Product Model: LT-100A/1200W

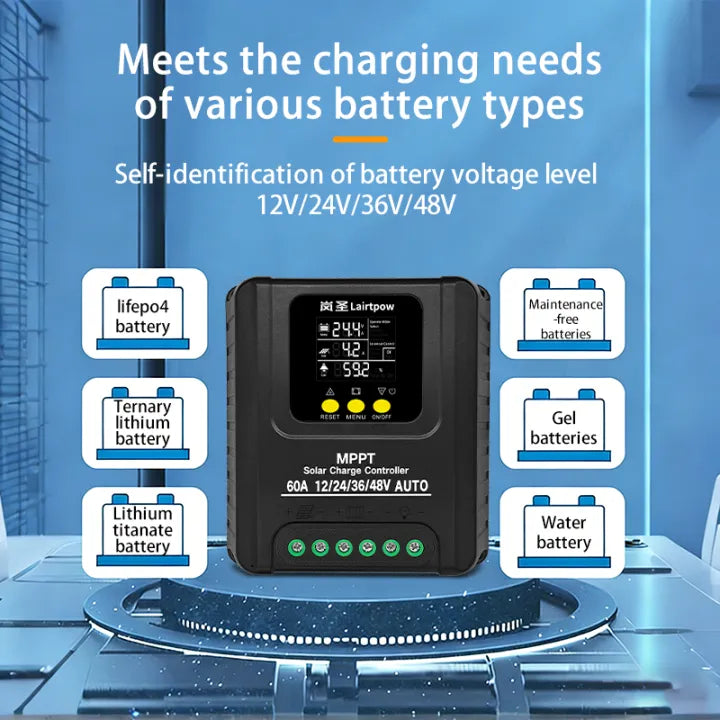

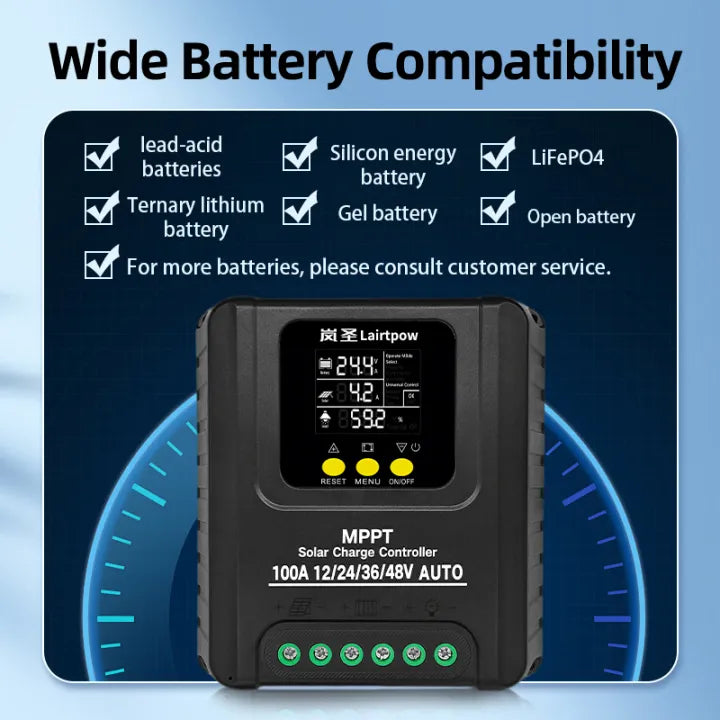

Applicable Batteries: Lead-acid, Hydrogen-ion Battery, Gel Battery, Lithium
Battery Voltage: 12V/24V/36V/48V
Adaptive Mode: Lead-acid Battery Auto-adaptive / Lithium Battery Overcharge Voltage Adjustment

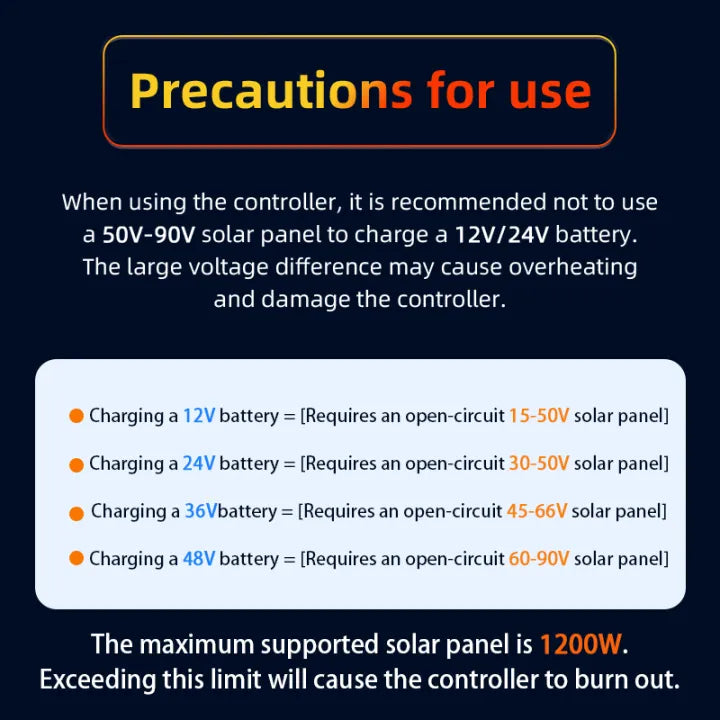

PV Panel Input Voltage Range (VDC):
12V battery uses 18V-50V PV panel; 24V battery uses 30V-50V PV panel;
36V battery uses 45V-69V PV panel; 48V battery uses 60V-90V PV panel;
Battery:
Boost Charge Voltage (VDC):
12V Battery - 14.6V (Adjustable)
24V Battery - 29.2V (Adjustable)
36V Battery - 43.8V (Adjustable)
48V Battery - 58.4V (Adjustable)
Float Charge Voltage (VDC):
12V Battery - 13.8V (Adjustable)
24V Battery - 27.6V (Adjustable)
36V Battery - 41.4V (Adjustable)
48V Battery - 55.2V (Adjustable)

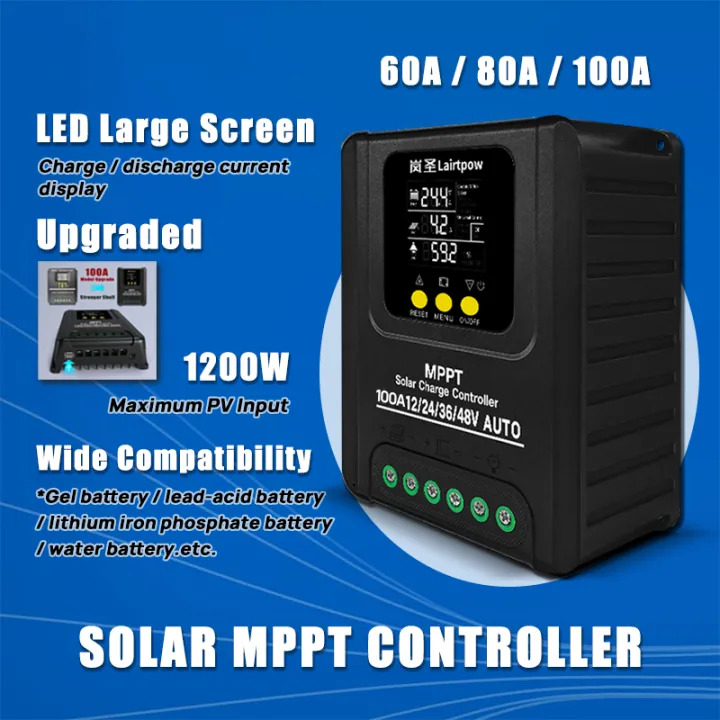

Supported PV Power: The controller supports up to Power Supply: 1200W

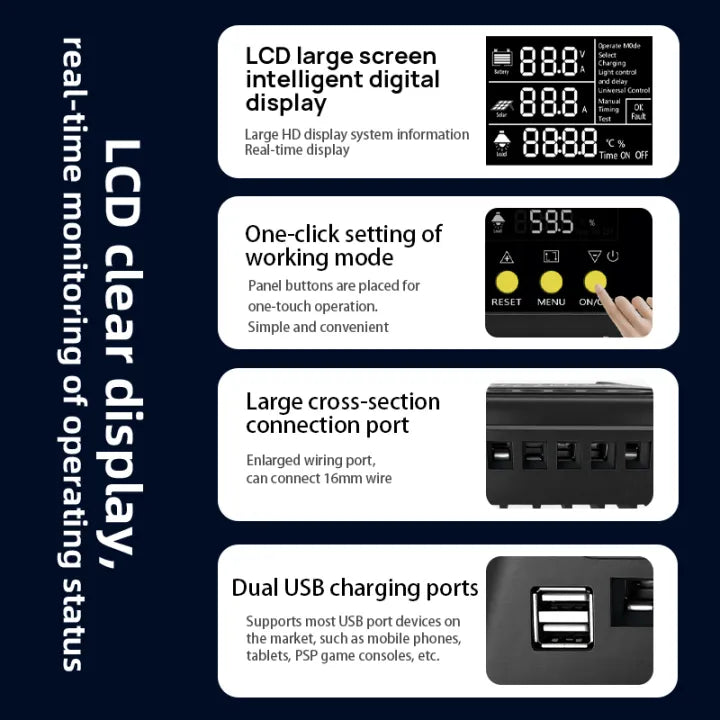

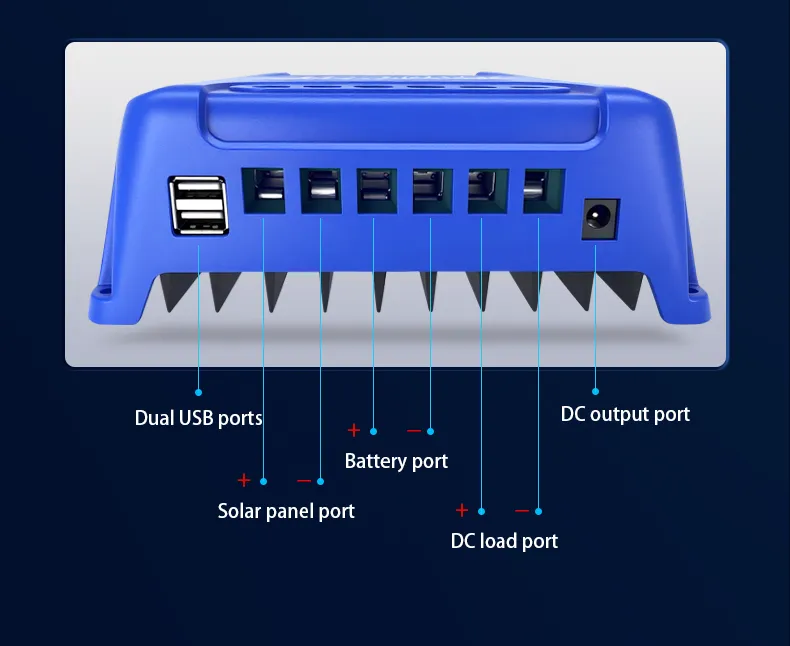

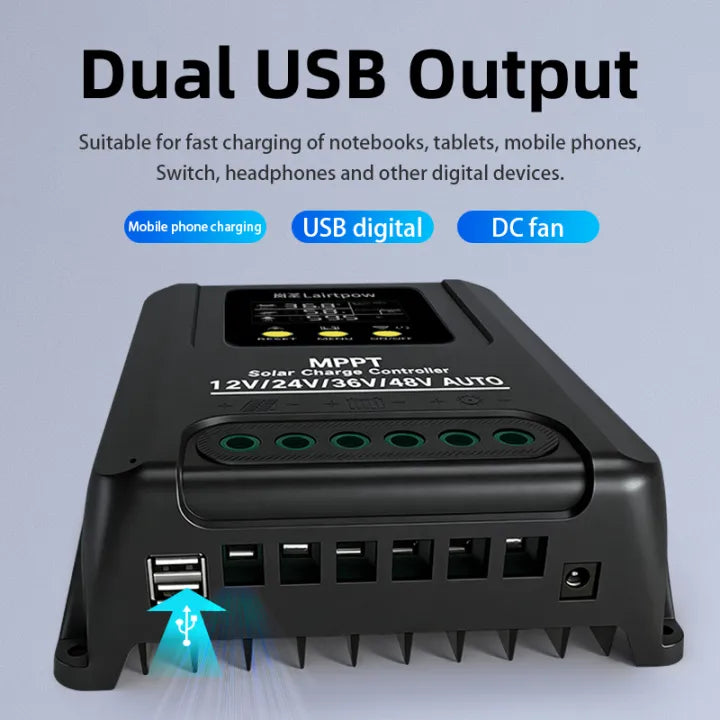

USB Output Ports (V): 5V/1A x 2
DC Output Ports (V): 2A x 1 (Output voltage follows battery voltage)
Load Power: Maximum load output power: 100W
Protections: Overcharge, overvoltage, high voltage, reverse polarity, etc.
Cooling: Self-cooling heat sink
Operating Temperature: 0-40°C
Operating/Storage Temperature: -15-50°C
Warranty: 6 months

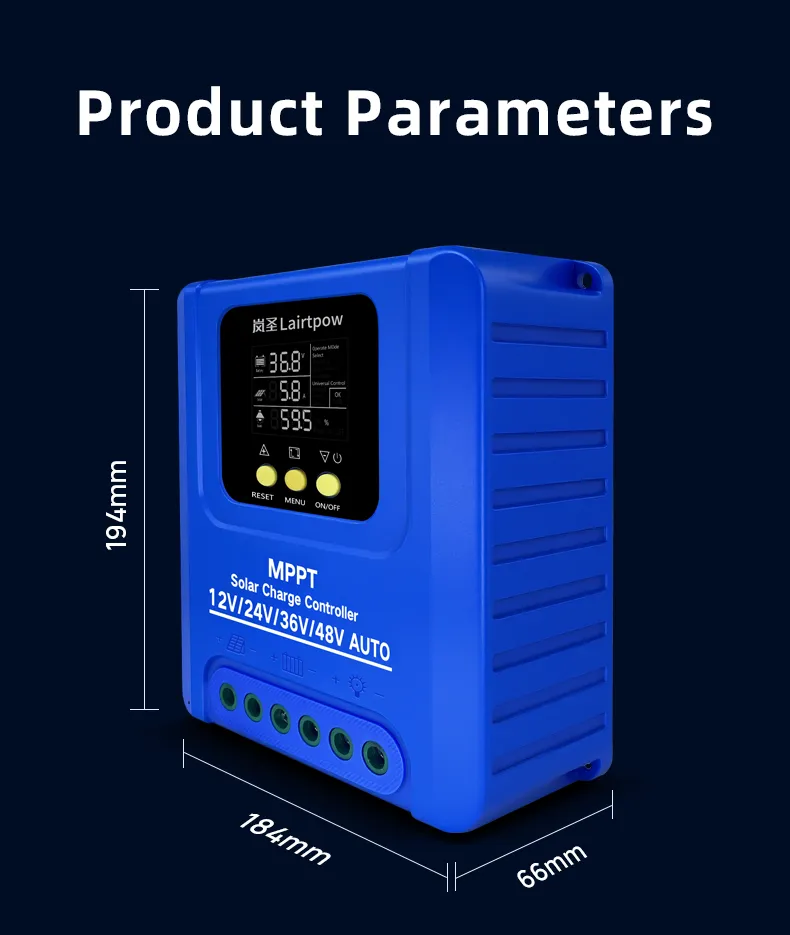

Dimensions: Approximately 194*184*66mm
Weight: Approximately 0.85kg
