Note: This model can operate with or without batteries. If operating without batteries, a solar panel is required; it will not power on when connected only to AC power.
Brand: LAIRTPOW

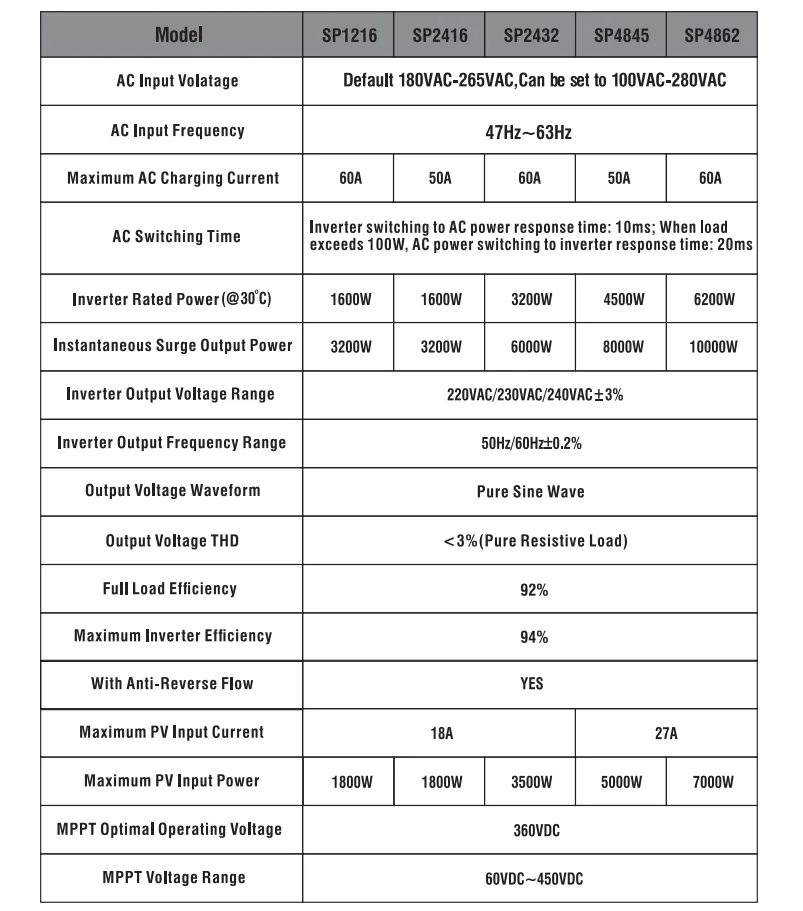

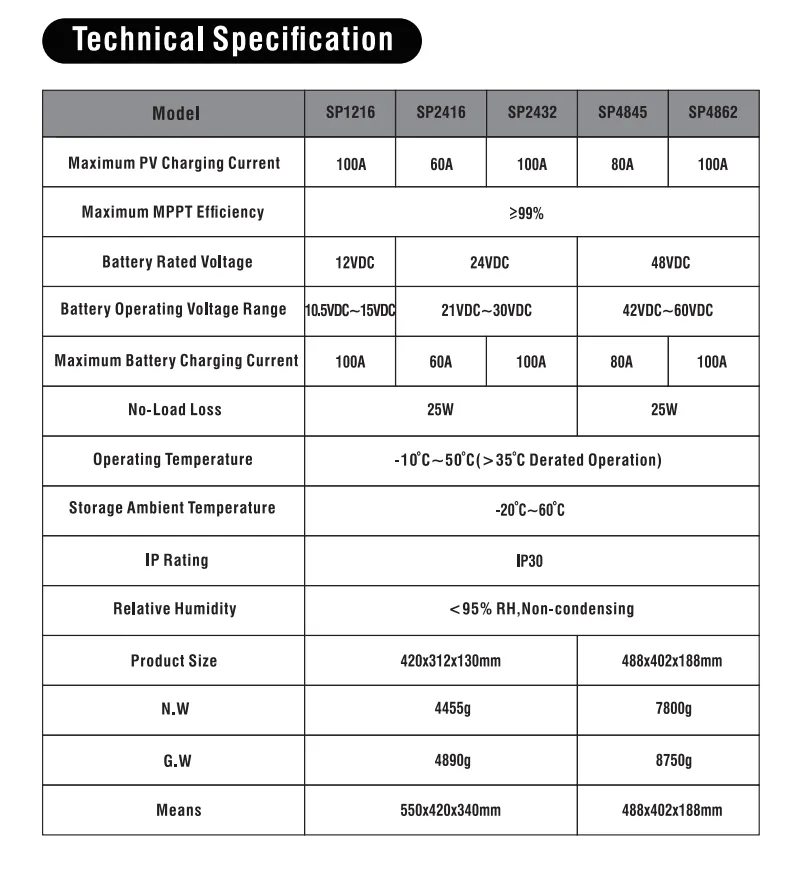

Model: SP2416/SP2432/SP4845/SP4862
Mains input voltage: default 180VAC~265VAC, can be set to 100VAC~280VAC
Mains input frequency: 47Hz~63Hz
Maximum mains charging current: 50A/60A
Mains switching time: inverter switching to mains response time (10ms); when the load is greater than 100W, the mains switching to inverter response time (20ms)
Inverter rating Rated power (@30°C): 1600W/3200W/4500W/6300W
Instantaneous surge output power: 3200W/6000W/8000W/10000W
Inverter output voltage level: 220VAC/230VAC/240VAC+3%
Inverter output frequency level: 50Hz/60Hz±0.2%

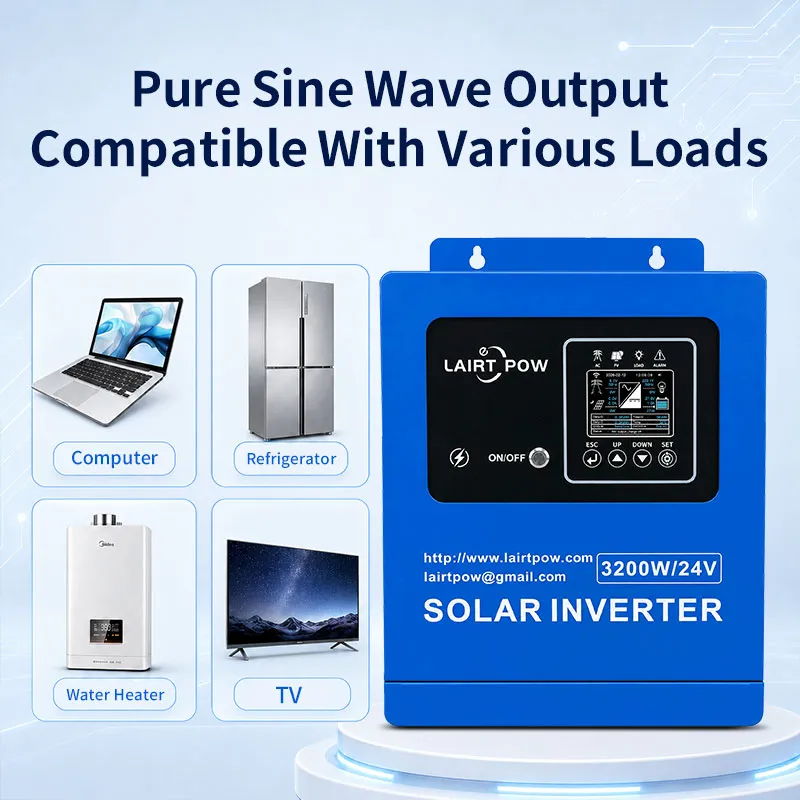

Output voltage waveform: pure sine wave
Output voltage total harmonic distortion rate: <3% (pure resistive load)
Full load efficiency: 92%
Max. Inverter efficiency: 94%
PV maximum input current: 18A/27A
PV maximum input power: 1800W/3500W/5000W/7000W
MPPT optimal operating voltage: 360VDC
MPPT voltage range: 45VDC~450VDC
PV maximum charging current: 60A/100A/80A/100A
MPPT maximum efficiency: >99.0%
Battery rated voltage: 12VDC/24VDC/48VDC
Battery Working voltage range: 21VDC~30VDC/42VDC-60VDC
Maximum battery charging current: 60A/100A/80A/100A
No-load loss: 25W
Working environment temperature: -10°C~50°C (>35°C derating operation)
Storage environment temperature: -20°C~60°C
Protection level: IP30
Relative humidity: <95% (no condensation)

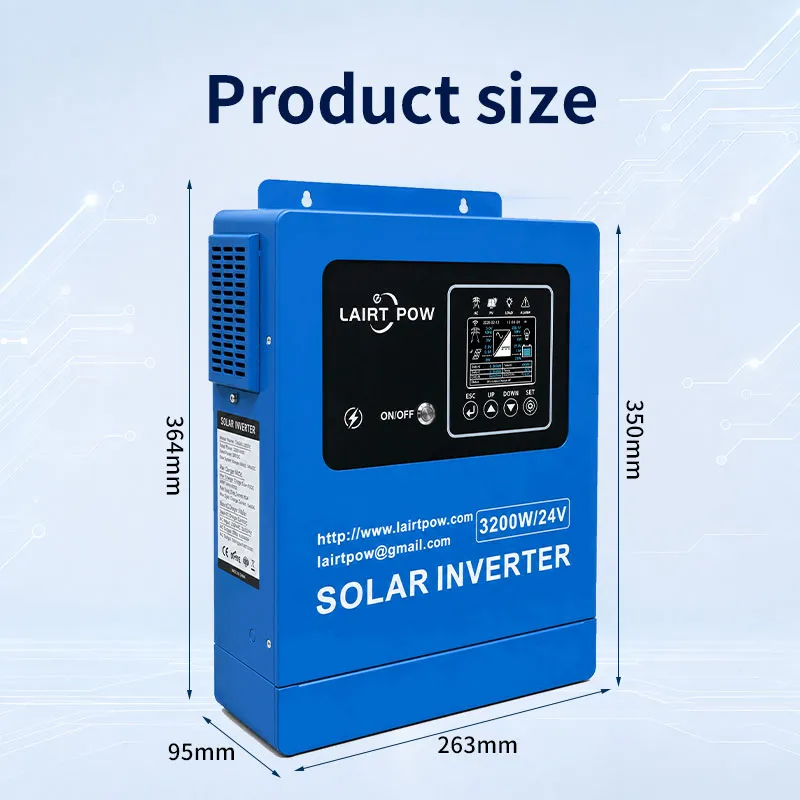

Product size: 365X263X95mm/414X310X107mm
For more information, please contact customer service to get the instruction manual.
