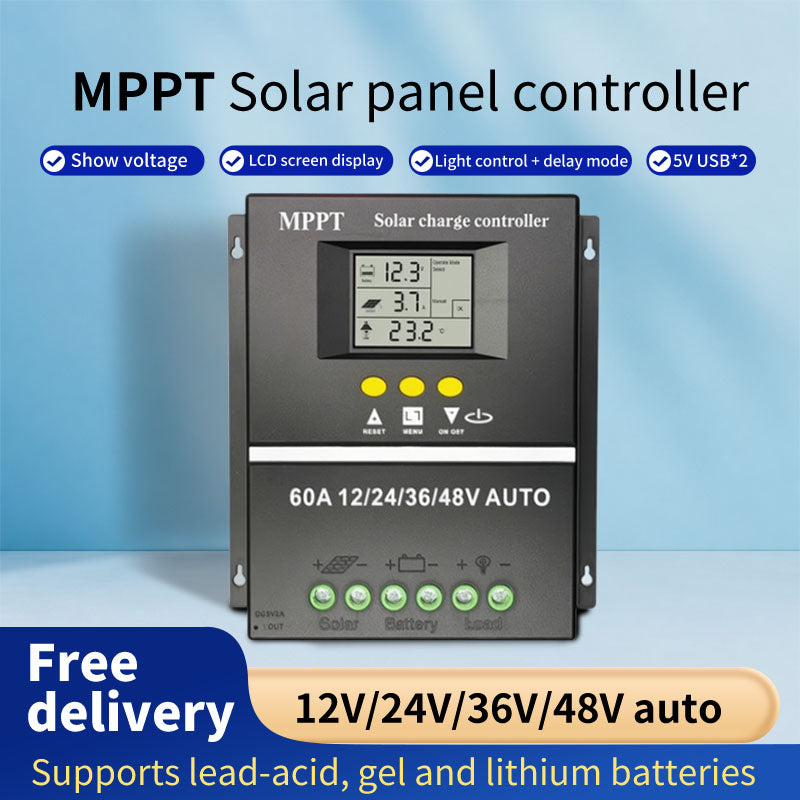

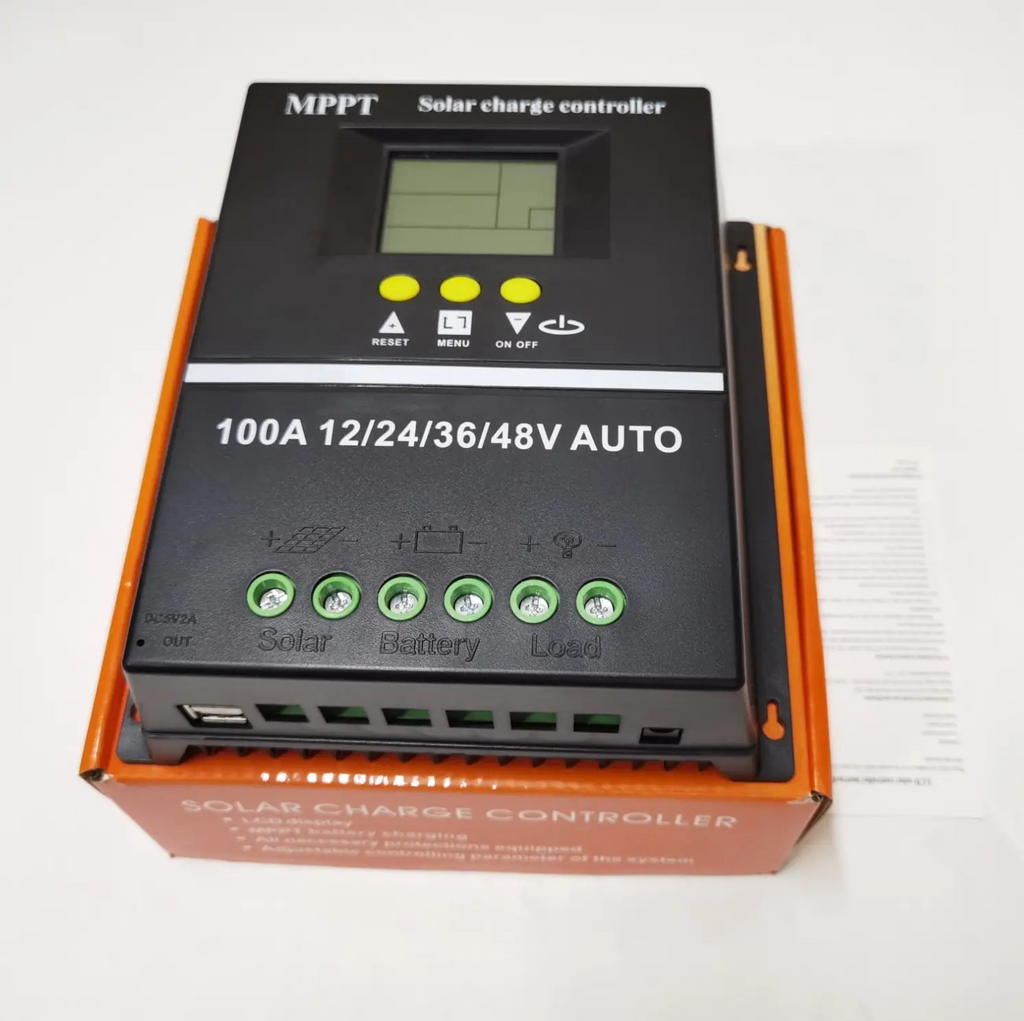

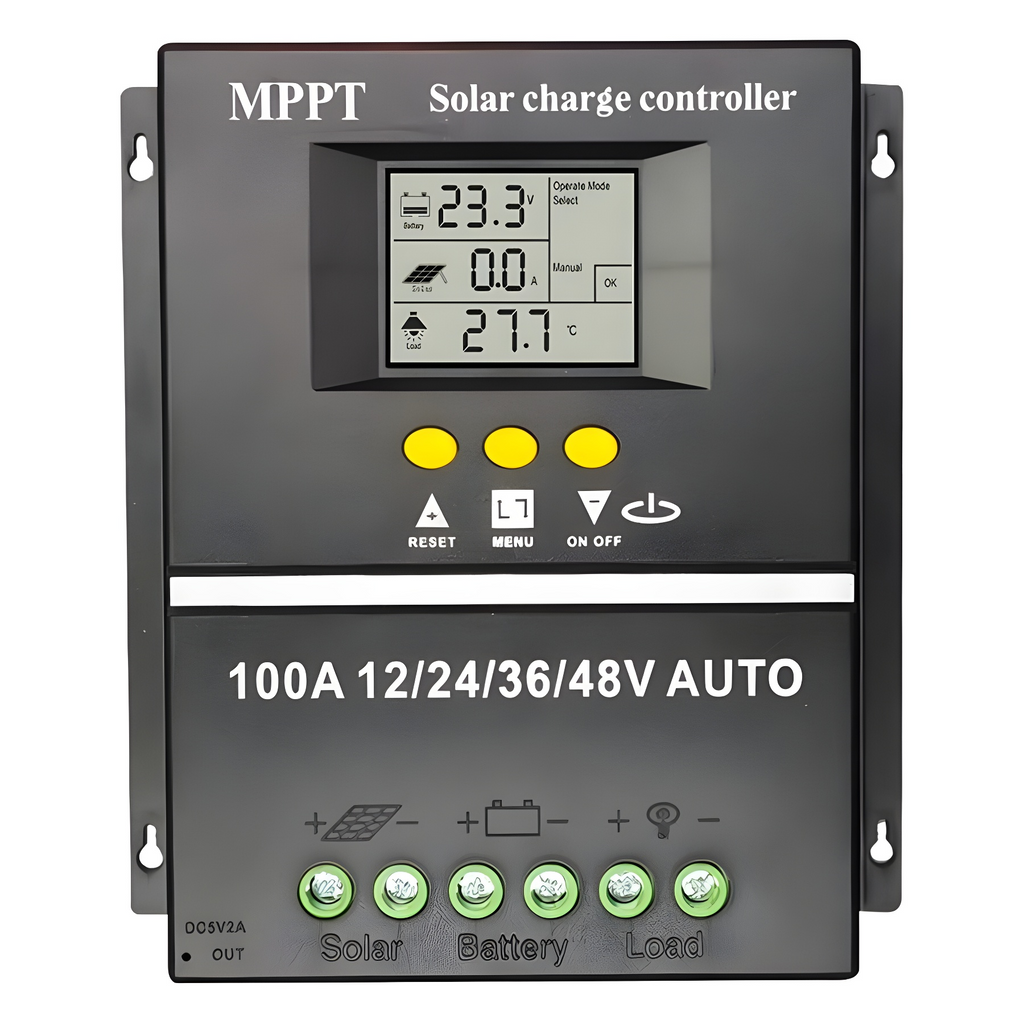

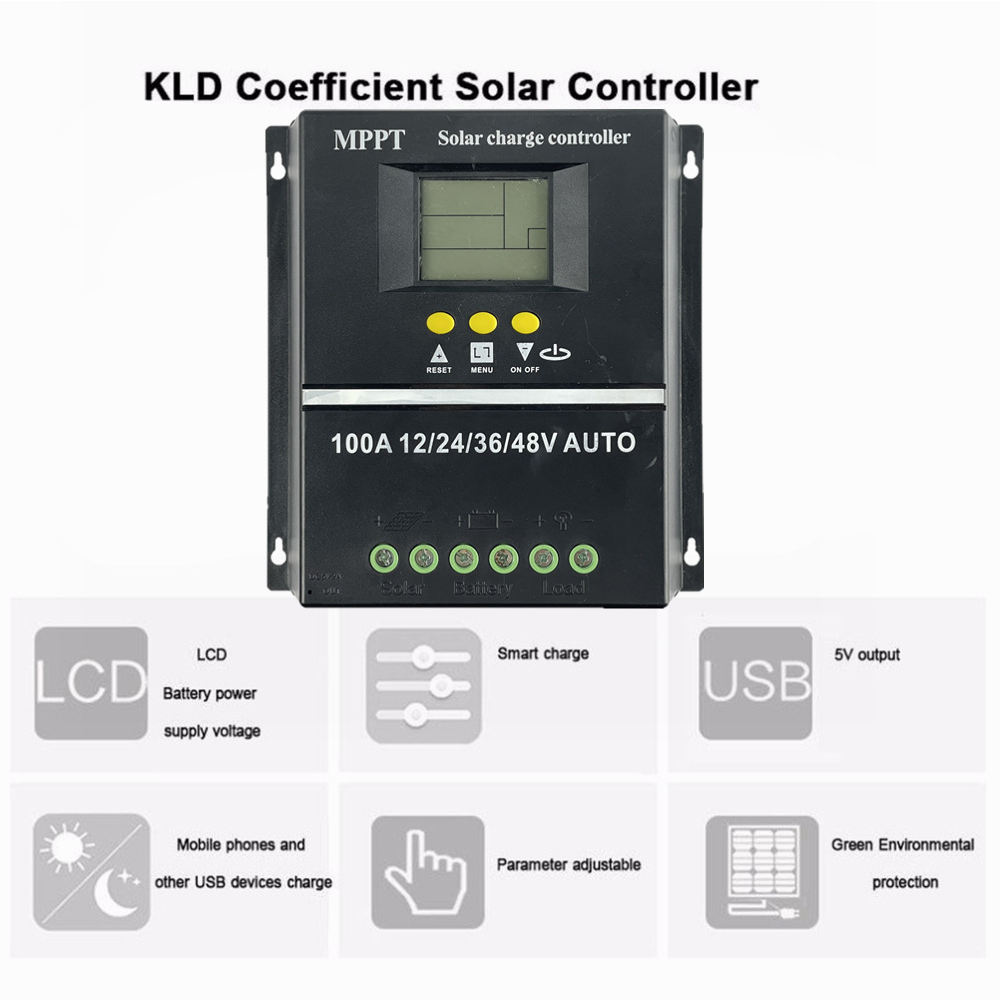

LAIRTPOW MPPT Solar Controller 30A/ 60A/80A/100A 12V 24V 36V 48V AUTO

Specifications of

SKU
5223401466_PH-30952013574
Type Of Electrical Circuit Parts
Connectors
Material
Plastic
Type Of Electrical Boxes/Conduits & Fittings
Adapter
Type Of Electrical Connectors
Board-To-Board Connectors
Circuit Breaker Types
Air Circuit Breaker
Warranty Type
Local Supplier Warranty
Warranty Period
6 Months

Product details of

MPPT DC 12V/24V/36V/48V AUTO 30A 60A 80A 100A Solar Charge Controller compatible with lead acid/colloid

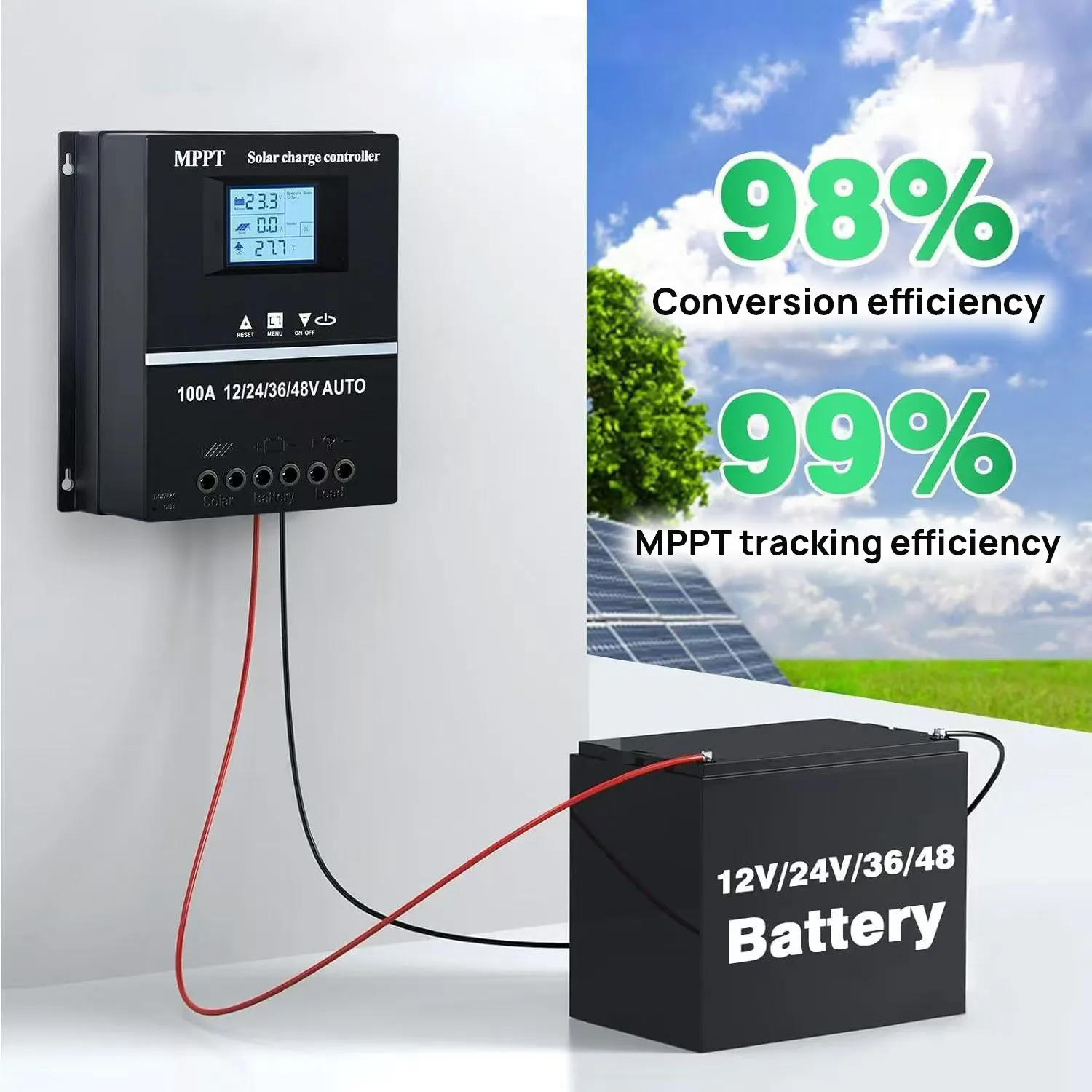

*Caution: Connect the battery first. and then connect the solar panel The sequence cannot be reversed.

Can be paired with solar panels (can be connected in series)

MPPT 30A:

Can be paired with solar panels 50--1440W (can be connected in series)

Can contact with 12--48V battery.

MPPT 60A:

Can be paired with solar panels 50--2880W (can be connected in series)

Can contact with 12--48V battery.

MPPT 80A:

Can be paired with solar panels 50--3840W (can be connected in series)

Can contact with 12--48V battery.

MPPT 100A:

Can be paired with solar panels 50--4800W (can be connected in series)

Can contact with 12--48V battery.

Description of charging protection

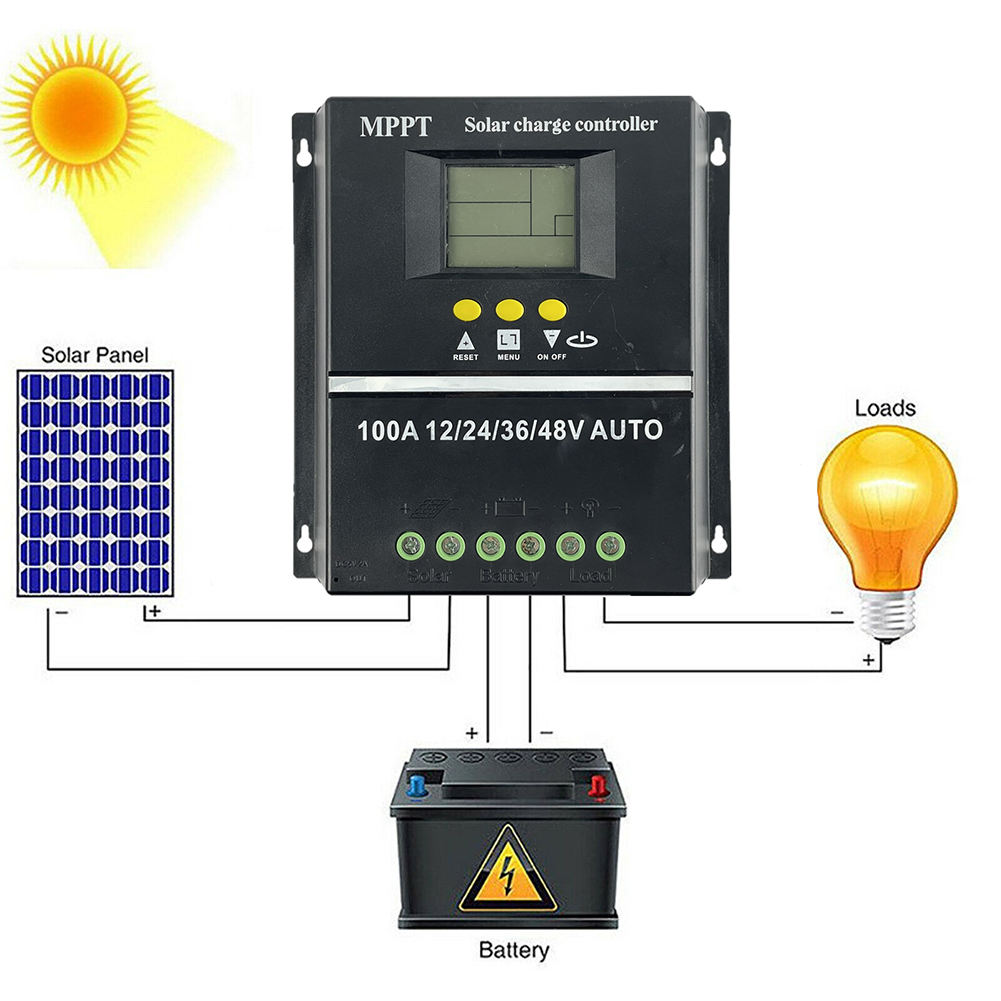

*Note: Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

*Clock setting instructions: When the battery is connected, press "▲" "▼" to set the clock table, short press "■" to save.

*Charging voltage setting instructions: After connecting the battery, after setting the clock and saving, long press "▲" for 3-5 seconds, the screen displays L**V as the floating charge voltage, which can be adjusted by pressing "▼"; short press again "▲"H**V is to increase the charging voltage, which can be adjusted by pressing "▼"; shortly press "▲" again. F**V is the low-voltage cut-off voltage of the DC load, which can be adjusted by pressing "▼"; after setting Long press "▲" for 3-5 seconds to save and exit.

product details

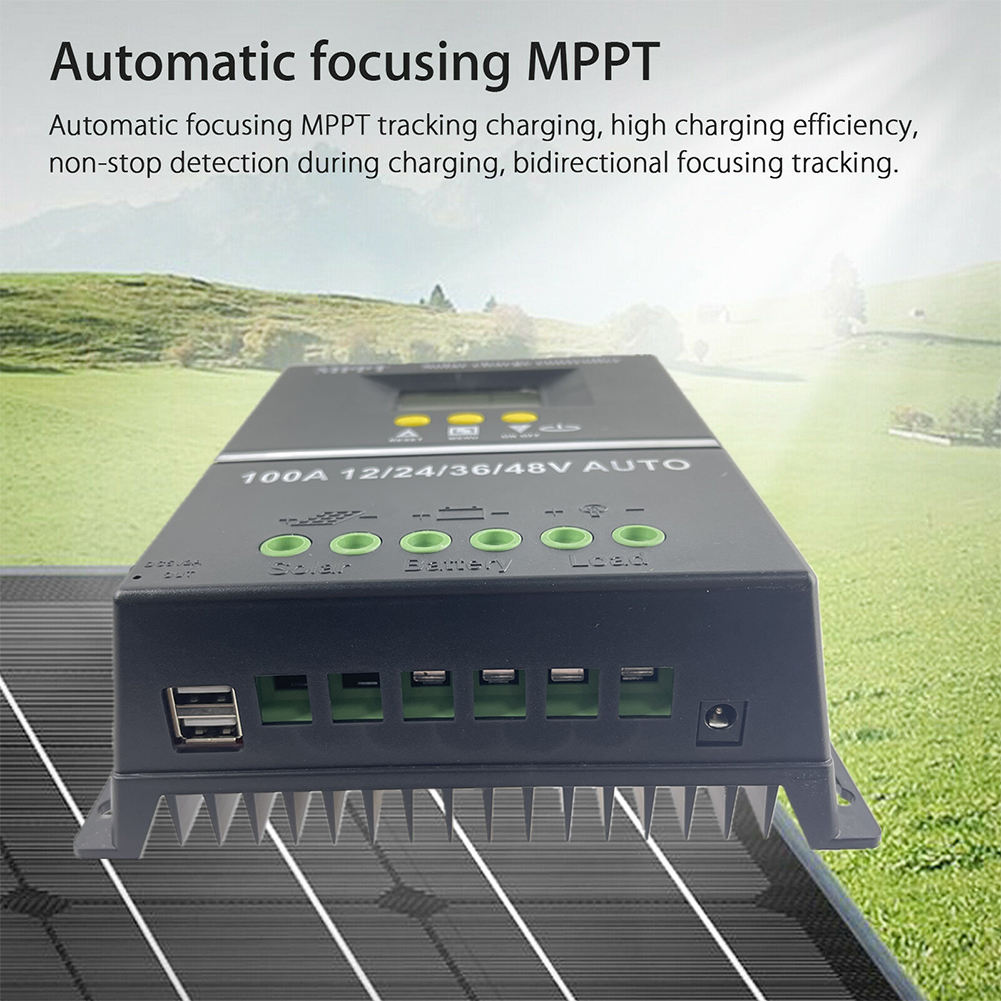

Charging type: MPPT

*Max current: 30A/ 60A/80A/100A/

*Battery type: Lead-acid battery (FLD\ GEL\ SLD) or lithium battery or user battery.

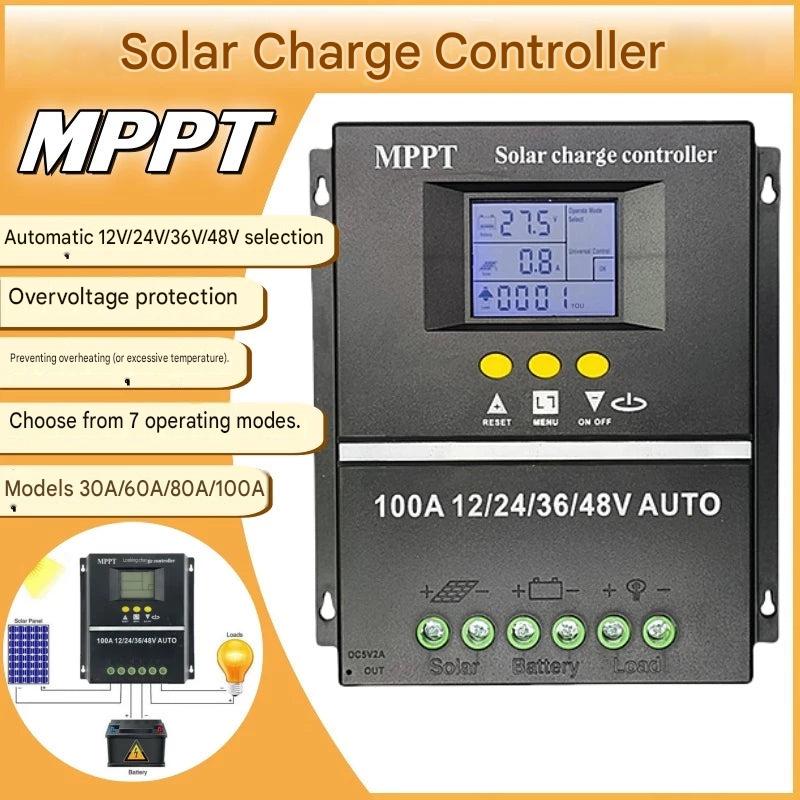

*System Voltage: Auto 12V / 24V / 36V / 48V

*Automatic voltage identification:

12V system uses a 15V-23V solar panel.

24Vsystem uses a 30V-46V solar panel.

36Vsystem uses a 45V-66V solar panel.

48Vsystem uses a 60V-90V solar panel.

*Maximum PV power: 720W / 12V system; System 1440W/24V; 2160W/36V system; 2880W/48V system

*Electromagnetic compatibility: AccordtoEN61000, EN55022, EN55024
